The Flottweg Recuvane® System
The Recuvane® system (recovery vane) is used for cutting the operating costs of the decanter centrifuge used by reducing the energy consumption.
How Recuvane® functions
Energy is required in order to accelerate the separation medium to operating speed. The liquid separated from the solid is normally discharged without pressure. This means the energy contained in the water is lost. The Recuvane® system enables this rotational energy to be recovered by targeted centrate discharge, thus supporting the main drive and reducing energy consumption. It is possible to save 10 to 20 percent of the work energy (depending on the pond depth and sludge composition).

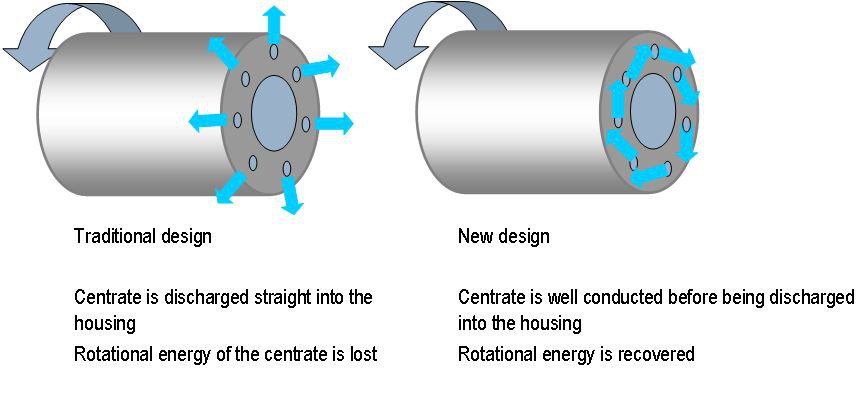

Pictorial representation of the Recuvane® system
The Recuvane® system and its advantages
- Less energy consumption by your decanter
- Purely mechanical operating principle, meaning it is robust
- Payback within 1 to 2 years, depending on throughflow
- Retrofit possible without major complexity
- Cost saving: less energy has to be consumed for the drive because energy is recovered.
- When large quantities liquid are processed, it is possible to save up to 20% of the work energy.
- An exact separation process is maintained
- In addition, several pond depths can be set (eccentric screws)
- Retrofitting the Recuvane® system will pay for itself within only a few months
